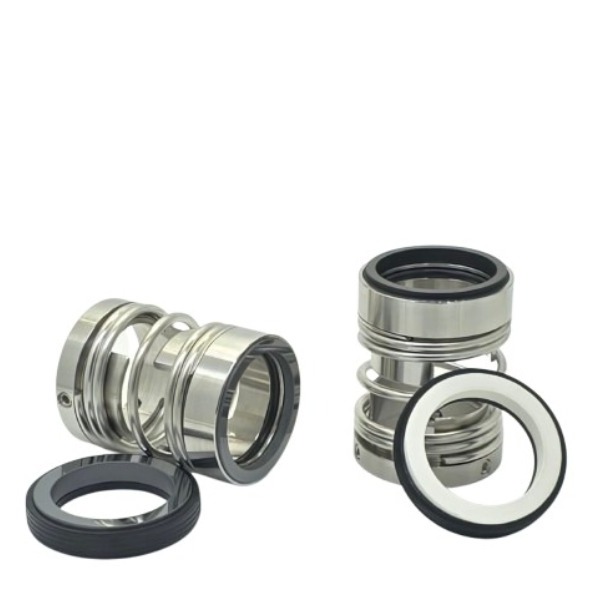

A Single Spring Mechanical Seal is a reliable and widely used shaft sealing solution designed to prevent leakage of fluids in pumps, mixers, compressors, and other rotating equipment. It operates with a single helical spring that provides uniform mechanical force to maintain consistent contact between the rotating and stationary seal faces, ensuring efficient sealing performance.
🔹 Working Principle
The seal consists of two primary sealing faces — one rotating with the shaft and one stationary fixed to the pump housing. The single spring applies balanced axial pressure, keeping both faces tightly in contact. This contact prevents fluid leakage while allowing smooth shaft rotation with minimal friction.
🔹 Key Components
Rotary Face (Carbon / SIC / TC) – Mounted on the shaft
Stationary Face (Ceramic / SIC / TC) – Fixed in the housing
Single Coil Spring – Provides constant pressure
Elastomers (Viton / NBR / EPDM) – Secondary sealing elements
Metal Parts (SS 304 / SS 316) – Corrosion-resistant structure
🔹 Major Features
✔ Simple and compact design
✔ Easy installation and maintenance
✔ Uniform spring load for stable sealing
✔ Suitable for moderate pressure applications
✔ Good resistance to wear and corrosion
✔ Cost-effective solution for general industrial use
🔹 Technical Specifications
Shaft Size Range: 10mm to 100mm (custom sizes available)
Pressure Rating: Up to 10–16 bar
Temperature Range: -20°C to 200°C (depending on elastomer)
Speed: Up to 3000 RPM
Face Combinations: Carbon vs Ceramic / SIC vs SIC / TC vs TC
🔹 Applications
Water pumps
Chemical transfer pumps
Agricultural pumps
Oil & light chemical handling
Food processing equipment
Industrial circulation systems
🔹 Advantages
The single spring design ensures reliable sealing performance even under slight shaft misalignment. Its sturdy construction reduces downtime, extends equipment life, and minimizes maintenance costs. Because of its simple mechanism, it is one of the most preferred mechanical seals across various industries.
