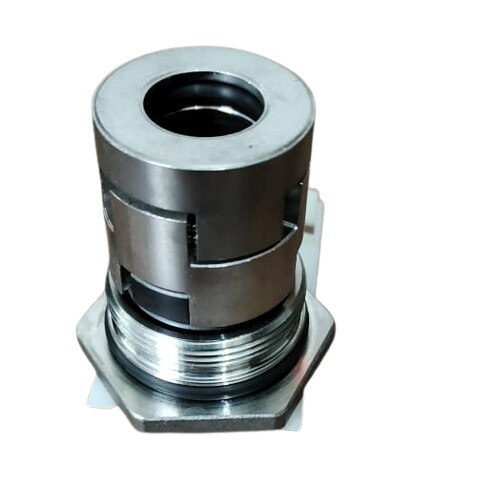

Cartridge seal

A Cartridge Mechanical Seal is a compact, pre-engineered sealing solution designed to eliminate leakage in rotating equipment such as pumps, agitators, and mixers. The seal is supplied as a fully assembled unit, integrating the seal faces, springs, secondary elastomers, sleeve, and gland into one precision-aligned cartridge, which ensures quick and error-free installation.

This type of seal works by maintaining controlled contact between a rotating seal face and a stationary seal face, supported by spring force and hydraulic pressure. The cartridge design protects critical sealing components from misalignment and shaft damage, making it highly reliable even in demanding operating conditions.

Key Features:

Pre-assembled and factory-set for accurate installation

Robust metal construction for durability

Uniform spring loading for consistent sealing performance

Minimizes shaft wear and installation errors

Suitable for clean, abrasive, and corrosive fluids

Applications:

Centrifugal and process pumps

Chemical and industrial pumps

Water treatment and utility services

Oil, gas, and petrochemical industries

General industrial fluid handling systems

Advantages:

Reduced maintenance and downtime

Extended seal and equipment life

Improved operational safety

Cost-effective and reliable sealing solution

Cartridge mechanical seals are ideal for industries seeking dependable, long-lasting sealing performance with ease of installation and consistent operational efficiency.
